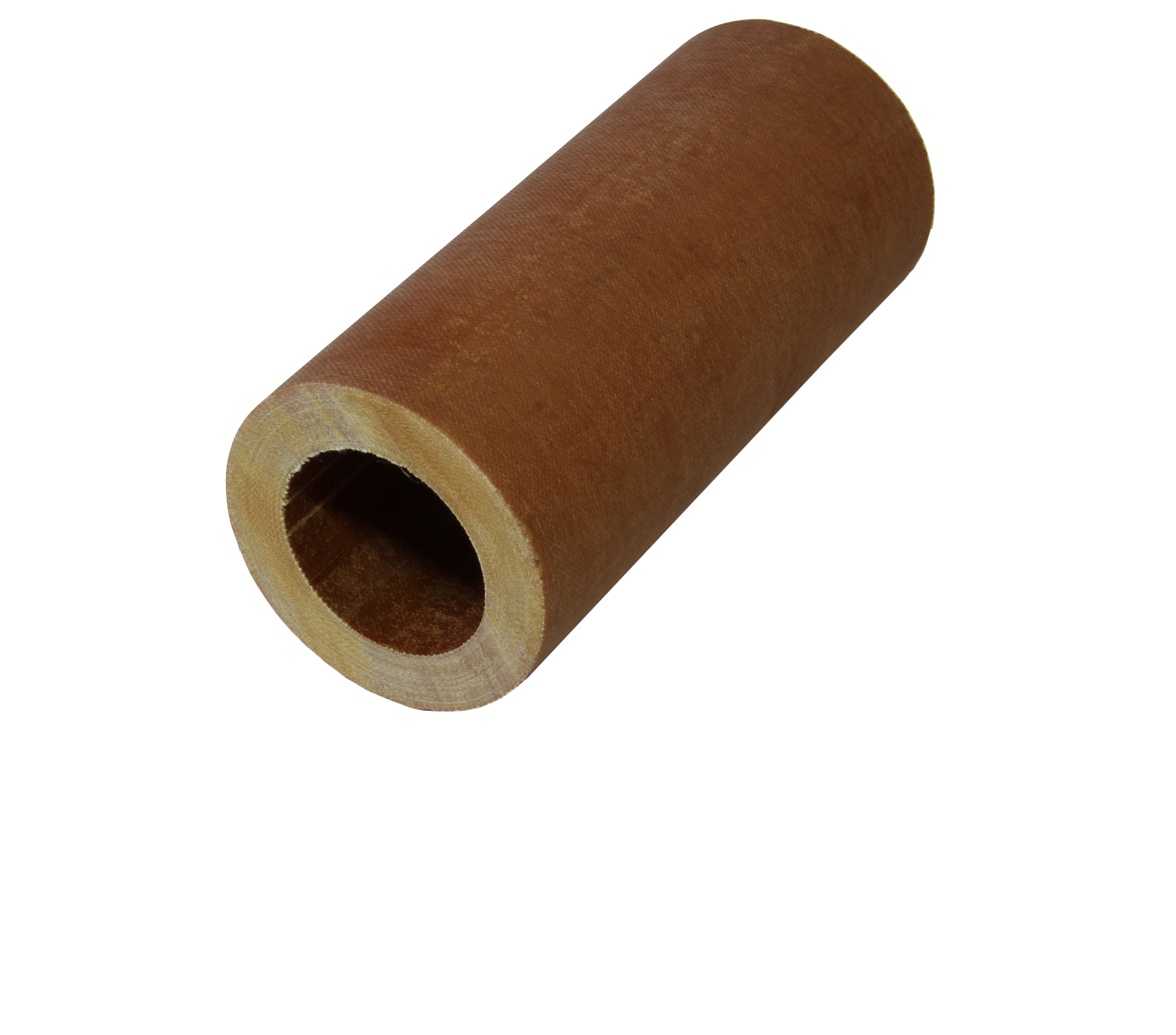

BAGGES TCP

BAGGES TCP is a tube laminate made of phenol-impregnated cotton fabric. It is brown in color and has good electrical properties at normal humidity. The pipes have high impact resistance and a surface with high wear resistance.

Applications
  • Mechanical and electical adaptations in low voltage constructions
  • Frames for ball bearings
  • Guide pipes for hydraulic cylinders
Technical documentation
Meets the requirements in:
NEMA LI-1 L
EN 61212 PF CC 21
DIN 7735 Hgw 2086
RoHS II 2011/65/EU
Technical table
Flexural strength in room temperature : 100 MPa
Compressive strength axial: 170 MPa
Cohesion between the layers: 130 MPa
Breakdown voltage in oil radially: 3,00 kV/mm
Breakdown voltage: 20 kV/25mm
Classification temperature: Class E = 120°C
Net weight: 1,30 g/cm³
Teknisk datablad Technical data sheet BAGGES-TCP
