PEKOS FIG. Z 14/16 TTGV - ANSI

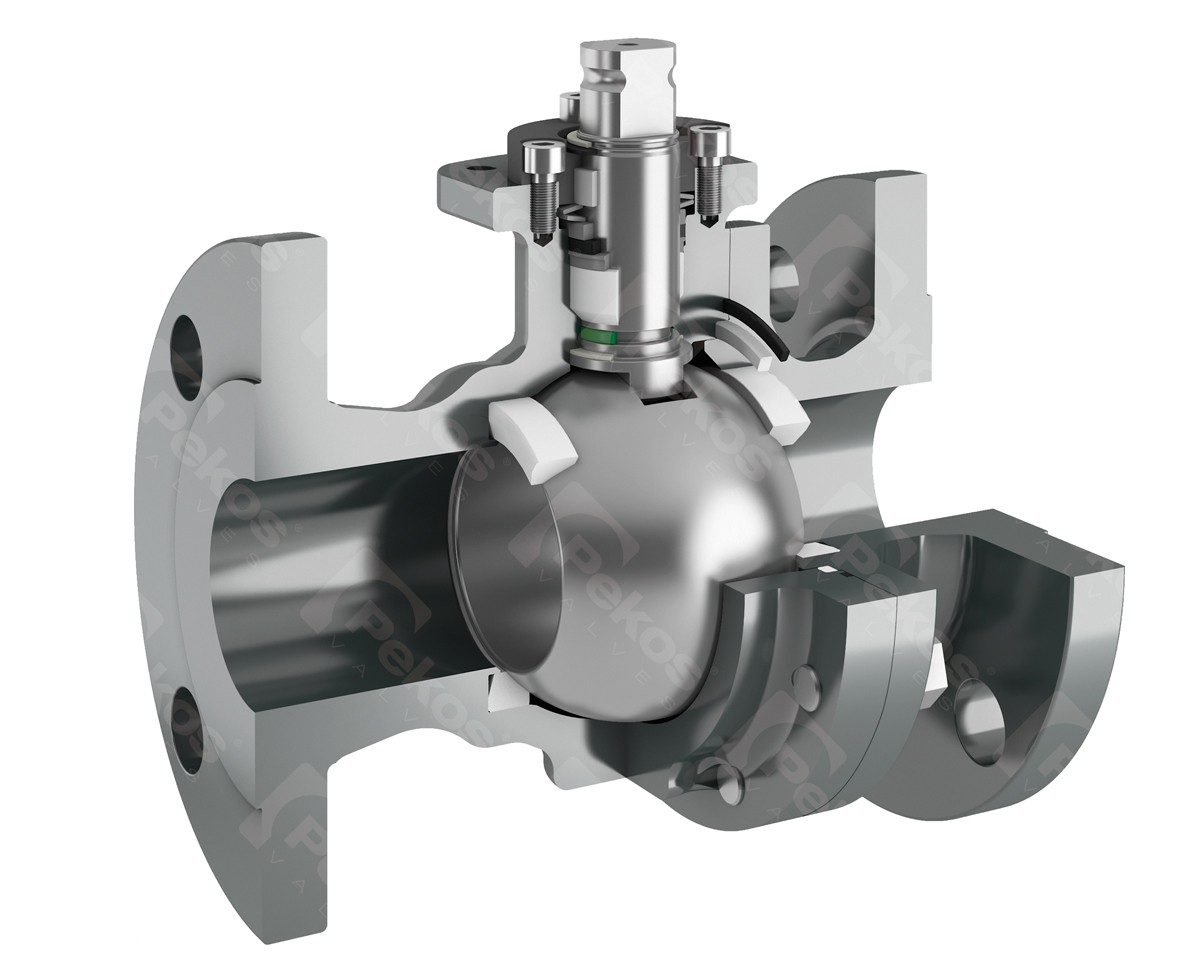

PEKOS 2-piece ballvalve Fig. Z 14/16 TTGV ANSI 150# has a soft seat, split body, floating ball, flanged connection and full bore. Supplied as standard with handle, can be mounted with pneumatic or electric actuator.

PEKOS product range consists of flanged ballvalves that are available in most materials and construction lengths. The ballvalves are often used in process applications in connection with various media. The advantage of PEKOS ballvalves is that they can be delivered with different ball seals that meet demanding requirements for density and service life. The available seals are TFM (T) modified Teflon, PEEK, graphite-filled or POM.

PEKOS has a comprehensive product range with several variants, such as valves designed with a heating jacket, spindle extension, in cryogenic or a metal seated design.


Contact us for more information about these variants.



Properties
  • Flange connection according to ANSI B16
  • Face to face according to ANSI B16.10
  • 2-piece valve body
  • Carbon steel A216 WCC (Fig. Z 14) or Stainless steel A351 CF8M (Fig. Z 16)
  • Antistatic design
  • Maintenance-free stem (loaded stem springs)
  • Guided and blow-out safe stem
  • Lockable lever
Technical data
  • Top flange according to ISO 5211
  • Leakage rate according to API 598, API6D, B56755-1
  • According to TA-air VDI 2440
  • Design according to API 6D, B16.34
  • Materials according to NACE MR0175
  • SIL3 Capable
  • Can also be delivered according to EN161 which is a European standard that describes automatic shut-off valves for gas burners and gas appliances
Technical documentation
  • PED 97/23/EC
  • ATEX 2014/34/EU
  • FireSafe acc. to DIN EN ISO 10497 & API 607
  • Certificate EN 10204-3.1 on request
  • Lloyds Register type certificate for "Classification of Ships and Mobile Offshore Units and Fixed Offshore Installations"
Technical table
Body: See variants
Ball: Stainless steel A351 CF8M
Stem: Stainless steel AISI 316
Ball sealing: TFM (T)
Stem sealing: TFM (T)
Body seal 1: TFM (T)
Body seal 2: Graphite (G)
Stem O-ring: Viton (V)
