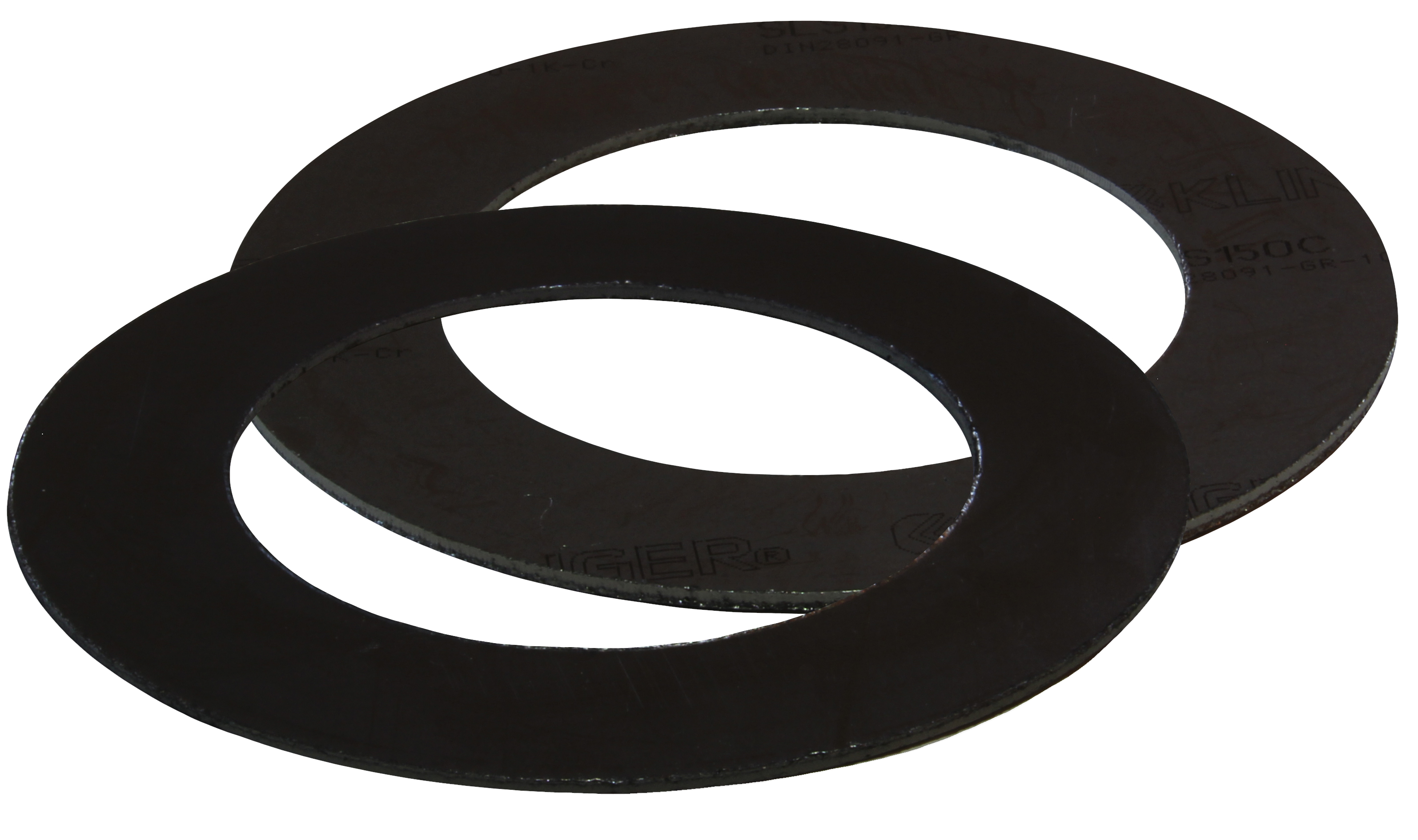

KLINGER grafittlaminat SLS-1

KLINGER SLS-1 is a graphite gasket that has stable features at high temperatures. The gasket is made of expanded layers of over 98% pure graphite, which are stuck to a 0.05 mm thick steel foil insert (1.4401). The steel insert is coated with an adhesive that holds the graphite in place. SLS-1 is the easiest graphite gasket to process. In addition, graphite will adjust to  uneven flanges, function well at low bolt loads and the stainless steel foil insert increase the stabillity of the gasket, which makes the gasket is easy to handle.

Graphite gasket SLS-1 can for example be used in connection with steam and other applications with higher temperatures.

The gasket can for example be used within the process industry, chemical industry, energy production, transport and pulp and paper production.







Properties
  • Well suited for steam and other applications with higher temperatures
Applications
  • Oils
  • Water
  • Steam
  • Fuel
  • Alcohol
  • Weak acid
  • Hydro Carbons
  • Refrigerants
Technical data
  • Temperature range: -200°C to+450°C
  • Stocked gasket thicknesses: 1mm, 1,5mm, 2mm and 3mm
  • >98% graphite (B)
  • Other gasket thicknesses
Technical documentation
  • Firesafe API 6FB
  • Oxygen BAM test report
KLINGER SLS-1 plates
Product number Width mm Unit
20020005 1000 x 1000 x 0,6 stk
20020007 1000 x 1000 x 1,0 stk
20020011 1000 x 1000 x 2,0 stk
20020014 1000 x 1000 x 3,0 stk
20020015 1000 x 1000 x 4,0 stk
20020109 1000 x 1000 x 1,5 stk
KLINGER SLS-1 flange gaskets acc. DIN EN 1514-1
Product number Dimension Pressure class Width mm
20061502 10 10/40 Ø18/46 × 1,5
20061504 15 10/40 Ø22/51 × 1,5
20061505 20 10/40 Ø27/61 × 1,5
20061506 25 10/40 Ø34/71 × 1,5
20061507 32 10/40 Ø43/82 × 1,5
20061508 40 10/40 Ø49/92 × 1,5
20061509 50 10/40 Ø61/107 × 1,5
20061510 65 10/40 Ø77/127 × 1,5
20061511 80 10/40 Ø89/142 × 1,5
20061520 100 10/16 Ø115/162 × 1,5
20061521 100 25/40 Ø115/168 × 1,5
20061522 125 10/16 Ø141/192 × 1,5
20061523 125 25/40 Ø141/194 × 1,5
20061524 150 10/16 Ø169/218 × 1,5
20061525 150 25/40 Ø169/224 × 1,5
20061526 200 10/16 Ø220/273 × 1,5
20061527 200 25 Ø220/284 × 1,5
20061528 200 40 Ø220/290 × 1,5
20061529 250 10 Ø273/328× 1,5
20061530 300 16 Ø324/384 × 1,5
20061531 350 16 Ø356/438 × 1,5
20061532 400 16 Ø407/495 × 1,5
20061533 300 10 Ø324/378 × 1,5
20061534 350 10 Ø407/489 × 1,5
20061535 400 10 Ø458/539 × 1,5
20061536 450 10 Ø508/594 × 1,5
20061537 500 10 Ø610/695 × 1,5
20061538 600 10 Ø115/168 × 1,5
20061539 250 16 Ø273/329 x 1,5
KLINGER SLS-1 flange gaskets acc. ASME/ANSI 316.21
Product number Dimension Pressure class Width mm
20061704 1/2" 150# Ø21/48 × 1,5
20061705 3/4" 150# Ø27/57 × 1,5
20061706 1" 150# Ø33/67 × 1,5
20061707 1 1/4" 150# Ø42/76 × 1,5
20061708 1 1/2" 150# Ø48/86 × 1,5
20061709 2" 150# Ø60/105 × 1,5
20061710 2 1/2" 150# Ø73/124 × 1,5
20061711 3" 150# Ø89/136 × 1,5
20061712 4" 150# Ø114/175 × 1,5
20061713 5" 150# Ø141/197 × 1,5
20061714 6" 150# Ø168/222 × 1,5
20061716 8" 150# Ø219/279 × 1,5
20061718 10" 150# Ø273/340 × 1,5
20061719 12" 150# Ø324/410 × 1,5
20061720 14" 150# Ø356/450 × 1,5
20061721 16" Stk Ø406/515 × 1,5
20061722 18" 150# Ø457/550 × 1,5
20061723 20" 150# Ø508/607 × 1,5
20061725 24" 150# Ø610/718 × 1,5
20061726 26'' 150# Ø660/775 × 1.5
20061812 4" 300# Ø114/181 × 1,5
20061813 5" 300# Ø141/216 × 1,5
20061814 6" 300# Ø168/251 × 1,5
20061816 8" 300# Ø219/308 × 1,5
20061818 10 300# Ø273/362 × 1,5
20061819 12" 300# Ø324/422 × 1,5
20061820 14" 300# Ø356/486 × 1,5
20061821 16" 300# Ø406/540 × 1.5
20061822 18" 300# Ø457/597 × 1.5
20061823 20" 300# Ø508/654 × 1.5
20061825 24" 300# Ø610/775 × 1.5
20061826 26" 300# Ø660/835 × 1.5
20061904 1/2" 300-600# Ø21/54 × 1,5
20061905 3/4" 300-600# Ø27/67 × 1,5
20061906 1" 300-600# Ø33/73 × 1,5
20061908 1 1/2" 300-600# Ø48/95 × 1,5
20061909 2" 300-600# Ø60/111 × 1,5
20061911 3" 300-600# Ø89/149 × 1,5
