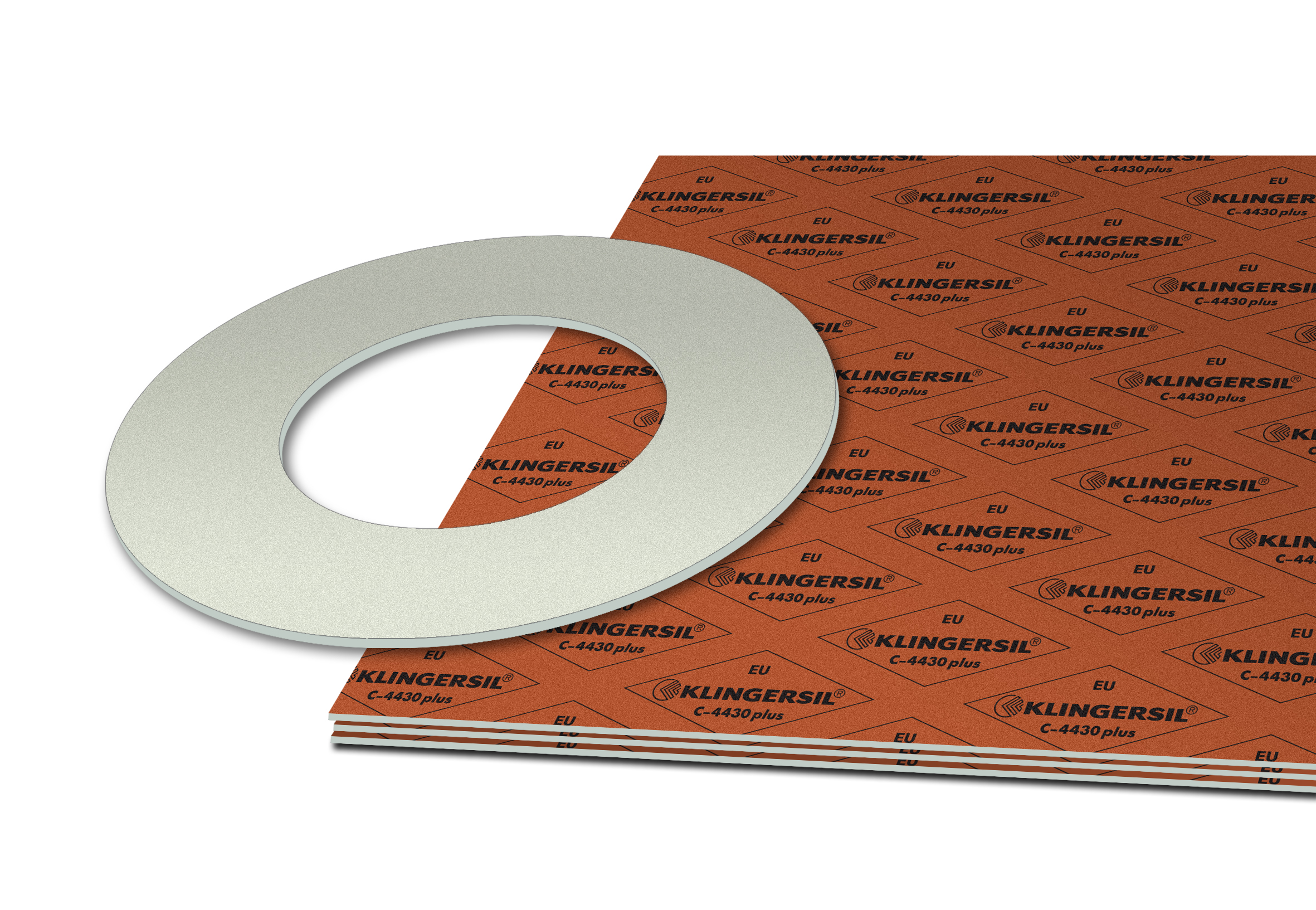

KLINGERSIL C-4430 PLUS
KLINGERSIL C-4430plus has outstanding stability properties and can withstand high surface pressure well. The quality of the gasket derives from synthetic fiber and fiberglass bonded together with NBR binder. This makes it well suited for higher pressures and temperatures, as well as very resistant to many different process applications
Properties |
|
---|---|
Applications |
|
Technical data |
|
Technical documentation |
|
KLINGERSIL C-4430 Plus plates
Product number | Width mm | Unit |
---|---|---|
20012214 | 1500 x 1000 x 3,0 | Stk |
20012216 | 1500 x 1000 x 5.0 | Stk |
20012316 | 2000 x 1500 x 5.0 | Stk |
20012507 | 2000 x 1500 x1,0 | Stk |
20012509 | 2000 x 1500 x 1,5 | Stk |
20012511 | 2000 x 1500 x 2,0 | Stk |
20012514 | 2000 x 1500 x 3,0 | Stk |
20012607 | 1500 x 1000 x 1,0 | Stk |
20012609 | 1500 x 1000 x 1,5 | Stk |
20012611 | 1500 x 1000 x 2,0 | Stk |
20012614 | 1500 x 1000 x 3,0 | Stk |
KLINGERSIL C-4430 Plus acc. DIN EN1514-1
Product number | Dimension | Pressure class | Width mm |
---|---|---|---|
20060412 | 100 | 10/16 | Ø115/162 × 1,5 |
20060413 | 125 | 10/16 | Ø141/192 × 1,5 |
20060414 | 150 | 10/16 | Ø169/218 × 1,5 |
20060416 | 200 | 10/16 | Ø220/273 × 1,5 |
20060418 | 250 | 10 | Ø273/328 × 1,5 |
20060419 | 300 | 10 | Ø324/378 × 1,5 |
20060420 | 350 | 10 | Ø356/438 × 1,5 |
20060421 | 400 | 10 | Ø407/489 × 1,5 |
20060422 | 450 | 10 | Ø458/539 × 1,5 |
20060423 | 500 | 10 | Ø508/594 × 1,5 |
20060424 | 600 | 10 | Ø610/695 × 1,5 |
20060425 | 700 | 10 | Ø712/810 x 1,5 |
20060426 | 800 | 10 | Ø813/917 × 1.5 |
20060439 | 300 | 16 | Ø324/384 x 1,5 |
20060602 | 10 | 10/40 | Ø18/46 x 1,5 |
20060604 | 15 | 10/40 | Ø22/51 x 1,5 |
20060605 | 20 | 10/40 | Ø27/61 × 1.5 |
20060606 | 25 | 10/40 | Ø34/71 × 1.5 |
20060607 | 32 | 10/40 | Ø43/82 × 1.5 |
20060608 | 40 | 10/40 | Ø49/92 × 1.5 |
20060609 | 50 | 10/40 | Ø61/107 × 1,5 |
20060610 | 65 | 10/40 | Ø77/127 x 1,5 |
20060611 | 80 | 10/40 | Ø89/142 × 1,5 |
20060612 | 100 | 25/40 | Ø115/168 × 1,5 |
20060614 | 150 | 25/40 | Ø169/224 × 1,5 |
20060615 | 200 | 25 | 220/284 x 1,5 |
20060616 | 200 | 40 | Ø220/290 × 1,5 |
20060617 | 300 | 25 | 324/400 x 1,5 |
20060618 | 300 | 40 | 324/418 x 1,5 |
KLINGERSIL C-4430 Plus acc. ASME/ANSI B16.21
Product number | Dimension | Pressure class | Width mm |
---|---|---|---|
20060704 | 1/2" | 150# | Ø21/48 x 1,5 |
20060705 | 3/4 | 150# | Ø27/57 × 1,5 |
20060706 | 1" | 150# | Ø33/67 × 1,5 |
20060707 | 1 1/4'' | 150# | Ø42/76 × 1.5 |
20060708 | 1 1/2" | 150# | Ø48/86 × 1,5 |
20060709 | 2" | 150# | Ø60/105 × 1,5 |
20060710 | 2 1/2" | 150# | Ø73/124×1,5 |
20060711 | 3" | 150# | Ø89/136 × 1,5 |
20060712 | 4" | 150# | Ø114/175 × 1,5 |
20060713 | 5" | 150# | Ø141/197 × 1,5 |
20060714 | 6" | 150# | Ø168/222 × 1,5 |
20060716 | 8" | 150# | Ø219/279 × 1,5 |
20060718 | 10" | 150# | Ø273/340 × 1,5 |
20060719 | 12" | 150# | Ø324/410 × 1,5 |
20060720 | 14" | 150# | Ø356/450 × 1,5 |
20060721 | 16" | 150# | Ø406/515 × 1,5 |
20060722 | 18" | 150# | Ø457/550 × 1,5 |
20060723 | 20" | 150# | Ø508/607 × 1,5 |
20060725 | 24" | 150# | Ø610/718 × 1,5 |
20060812 | 4" | 300# | Ø114/181 × 1,5 |
20060813 | 5" | 300# | Ø141/216 × 1,5 |
20060814 | 6" | 300# | Ø168/251 × 1,5 |
20060816 | 8" | 300# | Ø219/308 × 1,5 |
20060818 | 10'' | 300# | Ø273/362 × 1,5 |
20060819 | 12'' | 300# | Ø324/422 × 1,5 |
20060820 | 14'' | 300# | Ø356/486 × 1,5 |
20060821 | 16'' | 300# | Ø406/540 × 1,5 |
20060822 | 18'' | 300# | Ø457/597 × 1,5 |
20060823 | 20'' | 300# | Ø508/654 × 1,5 |
20060825 | 24'' | 300# | Ø610/775 × 1,5 |
20060904 | 1/2" | 300-600# | Ø21/54 x 1,5 |
20060905 | 3/4" | 300-600# | Ø27/67 x 1,5 |
20060906 | 1" | 300-600# | Ø33/73 x 1,5 |
20060907 | 1 1/4" | 300-600# | Ø42/83 x 1,5 |
20060908 | 1 1/2" | 300-600# | Ø48/95 x 1,5 |
20060909 | 2" | 300-600# | Ø60/111 x 1,5 |
20060910 | 2 1/2" | 300-600# | Ø73/130 × 1,5 |
20060911 | 3" | 300-600# | Ø89/149 × 1,5 |
KLINGERSIL C-4430 Plus acc. collar/flange
Product number | Dimension | Pressure class | Width mm |
---|---|---|---|
20060110 | 20 | 10 | Ø22/60 × 1,5 |
20060111 | 25 | 10 | Ø25/70 × 1,5 |
20060112 | 32 | 10 | Ø36/82 × 1,5 |
20060113 | 40 | 10 | Ø44/92 × 1,5 |
20060114 | 50 | 10 | Ø54/107 × 1,5 |
20060116 | 65 | 10 | Ø69/127 × 1,5 |
20060118 | 80 | 10 | Ø84/142 × 1.5 |
20060120 | 100 | 10 | Ø102/162 × 1,5 |
20060122 | 125 | 10 | Ø126/192 × 1,5 |
20060123 | 125 | 10 | Ø156/218 × 1,5 |
20060125 | 200 | 10 | Ø206/273 × 1,5 |
20060127 | 250 | 10 | Ø250/328 × 1,5 |
20060129 | 300 | 10 | Ø300/378 × 1,5 |
20060131 | 350 | 10 | Ø350/438 × 1,5 |
20060133 | 400 | 10 | Ø400/490 × 1,5 |
20060134 | 450 | 10 | Ø450/540 × 1,5 |
20060135 | 500 | 10 | Ø500/595 × 1,5 |
20060136 | 600 | 10 | Ø600/695 × 1,5 |
KLINGERSIL C-4430 Plus for tongue and groove flanges
Product number | Dimension | Pressure class | Width mm |
---|---|---|---|
20060452 | 10 | 10/100 | Ø24/34 × 1,5 |
20060453 | 15 | 10/100 | Ø29/39 × 1,5 |
20060454 | 20 | 10/100 | Ø36/50 × 1,5 |
20060455 | 25 | 10/100 | Ø43/57 × 1,5 |
20060456 | 32 | 10/100 | Ø51/65 × 1,5 |
20060457 | 40 | 10/100 | Ø61/75 × 1,5 |
20060458 | 50 | 10/100 | Ø73/87 × 1,5 |
20060459 | 65 | 10/100 | Ø95/109 × 1,5 |
20060460 | 80 | 10/100 | Ø106/120 × 1,5 |
20060461 | 100 | 10/100 | Ø129/149 × 1,5 |
20060462 | 125 | 10/100 | Ø155/175 × 1,5 |
20060463 | 150 | 10/100 | Ø183/203 × 1,5 |
20060464 | 200 | 10/100 | Ø239/259 × 1,5 |
