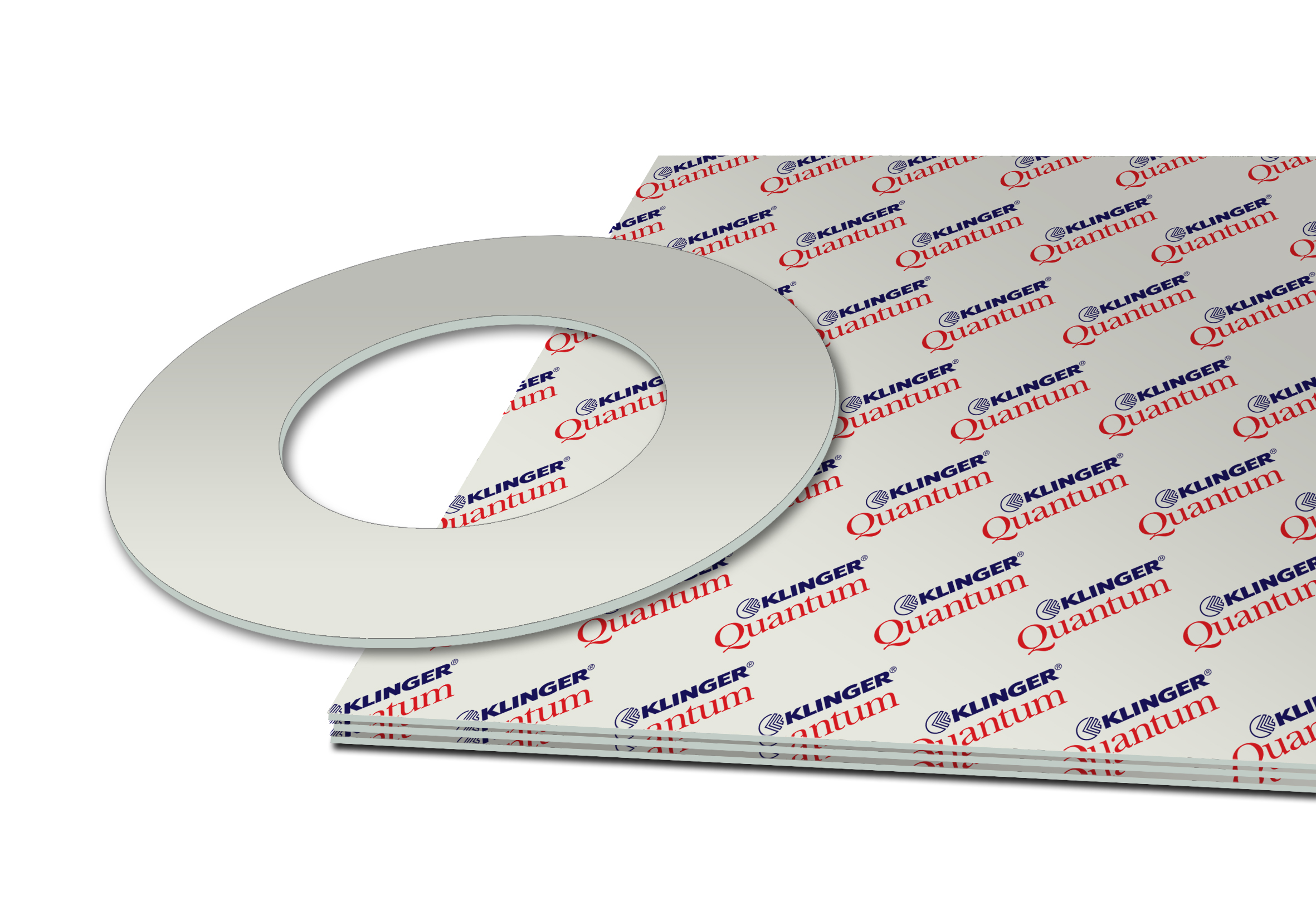

KLINGER QUANTUM

KLINGER Quantum is a high quality gasket for especially developed to maintain highest flexibility at high temperatures. KLINGER has developed a uniqe production method that makes it possible to use quality fibre, glass fibre and filler HNBR (Hydrogenated Nitrile Butadiene Rubber) as a binder. HNBR has very good chemical resistance and improved temperature resistance. Temperature are for the gasket is -200°C to 400°C and for more information regarding how the pressure and temperature affects the gasket, see the P-T diagram  in the datasheet.

Usually, compressed fiber gaskets are limited to temperatures for continuous operation. They become brittle and can be quickly damaged due to the fluctuations in a system with varying temperatures and pressures. KLINGER Quantum is still flexible even after prolonged use at 350 ° C

This gasket has a wider area of use than what is traditionally used for this type of material. KLINGER QUANTUM can for example be used in connection with oils, water, steam, gas, hydrocarbons, salt solutions, fuels, alcohols, lubricants, coolants and against moderate organic and inorganic acids.

The gasket can be used within the process industry, chemical industry, energy production, infrastructure, pulp and paper production, marine applications and in connection with pharma, food and beverage production.

Properties
  • Maintains highest flexibility after being exposed to high temperatures
  • Outstanding resitance to temperature
  • Resitant to creep and cold flow
Applications
  • Oils
  • Water
  • Steam
  • Gas
  • Fuels
  • Alcohols
  • Weak acids
  • Hydrocarbons
  • Refrigerants
  • Salt solutions
  • Lubricants
  • Moderate organic and inorganic acids
Technical data
  • Temperature range: -200°C til +400°C
  • Stocked gasket thickness: 1 mm, 1,5 mm and 2 mm
  • Request a quote for other thicknesses
Technical documentation
  • Firesafe DIN EN ISO 10497
  • Oxygen BAM tested report
  • Food and drug administration approved (FDA)
  • Leakage test (TA-Luft)
  • DIN-DVGW
KLINGER QUANTUM FDA plates
Product number Width mm Unit
20018307 2000 x 1500 x 1,0 Stk
20018309 2000 x 1500 x 1,5 stk
20018311 2000 x 1500 x 2,0 Stk
20018407 1500 x 1000 x 1,0 Stk
20018409 1500 x 1000 x 1,5 stk
20018411 1500 x 1000 x 2,0 Stk
KLINGER QUANTUM FDA flange gaskets
Product number Dimension Pressure class Width mm
20063310 10 10/40 Ø18/46 × 1,5
20063311 15 10/40 Ø22/51 × 1,5
20063312 20 10/40 Ø27/61 × 1,5
20063313 25 10/40 Ø34/71 × 1,5
20063314 32 10/40 Ø43/82 × 1,5
20063315 40 10/40 Ø49/92 × 1,5
20063316 50 10/40 Ø61/107 × 1,5
20063317 65 10/40 Ø77/127 × 1,5
20063318 80 10/40 Ø89/142 × 1,5
20063319 100 10/16 Ø115/162 × 1,5
20063320 125 10/16 Ø141/192 × 1,5
20063321 150 10/16 Ø169/218 × 1,5
20063322 200 10/16 Ø220/273 × 1,5
20063323 250 10 Ø273/328 × 1,5
20063324 300 10 Ø324/378 × 1,5
20063325 350 10 Ø356/438 × 1,5
20063326 400 10 Ø407/489 × 1,5
20063327 500 10 Ø508/594 × 1,5
