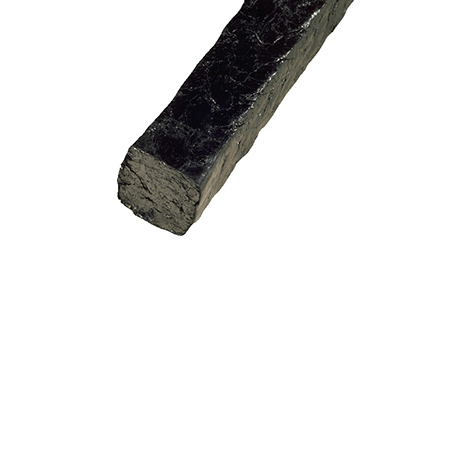

KLINGER 3222

KLINGER 3222 is a expanded graphite based tape which is braided into a stuffing box gasket. It is a soft gasket that is self-lubricating with an excellent sliding surface.

Properties
  • High temperature resistance
  • High chemical resistance
Applications
  • Static sealings
  • Rotating shafts such as in pumps
Technical data
  • Temperature range: -200°C to+430°C
  • Max static pressure: 230 bar
  • Max speed: 20m/s
  • pH: 0-14
KLINGER 3222
Product number Dimension Length Unit
22121101 3,2 mm 8 mtr./eske Stk
22121102 5,0 mm 8 mtr./eske Stk
22121103 6,5 mm 8 mtr./eske Stk
22121104 8,0 mm 8 mtr./eske Stk
22121105 9,5 mm 8 mtr./eske Stk
22121106 11,0 mm 8 mtr./eske Stk
22121107 12,5 mm 8 mtr./eske Stk
22121109 16,0 mm 8 mtr./eske Stk
22121111 19,0 mm 8 mtr./eske Stk
22121113 22,0 mm 8 mtr./eske Stk
22121115 25,0 mm 8 mtr./eske Stk
